Motion Dection Alarm Notification
* When video camera detect motion, it would send motion detection notification to your mobile
phone.
phone.
* The video surveillance can be activated by people.
* If set the Led on, when the CCTV camera detect motion, the
floodlight (spot light) would be on.
floodlight (spot light) would be on.

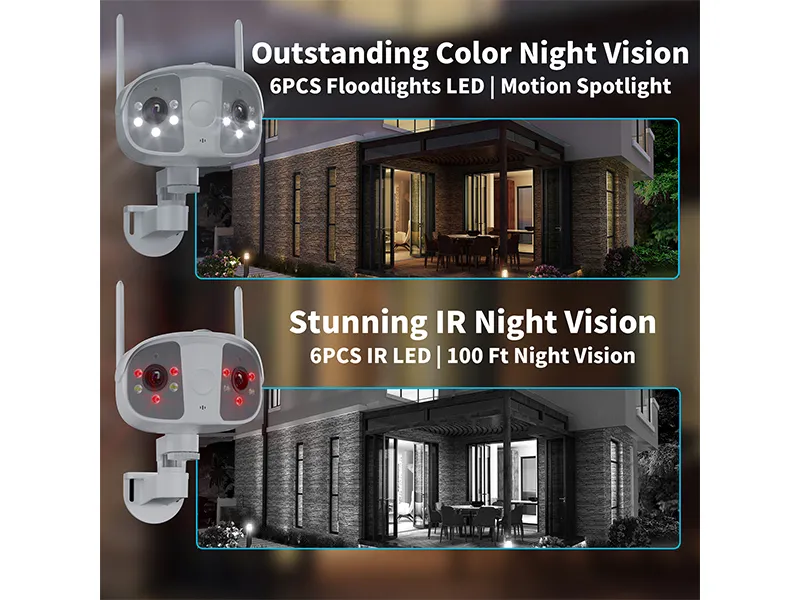

Color Night Vision CCTV IP Camera
* See everything in detail in day & night.
* This security camera has 3 modes of night vision:
Color, IR, Auto Night Vision.
Color, IR, Auto Night Vision.

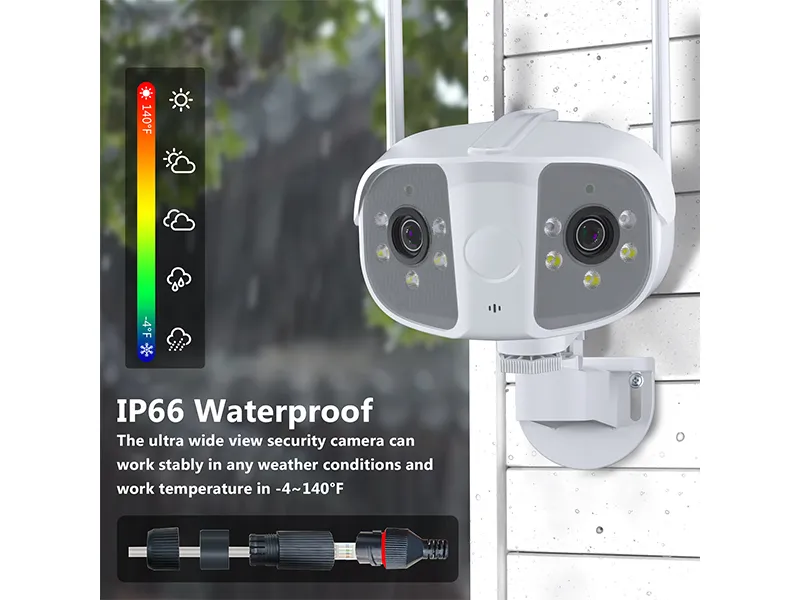

Waterproof IP66 Outdoor Camera
* The security outdoor camera is equipped with an IP66 rated weatherproof housing, designed
to operate the CCTV camera even in extreme weather conditions.
* The surveillance camera shell is made of high quality plastic material, which is waterproof
* IP66 design shell can prevent dust and splash water in (make sure all cover is used in correct position)
* The security outdoor camera is equipped with an IP66 rated weatherproof housing, designed
to operate the CCTV camera even in extreme weather conditions.
* The surveillance camera shell is made of high quality plastic material, which is waterproof
* IP66 design shell can prevent dust and splash water in (make sure all cover is used in correct position)
| SpecificationModel | F4 | |
| Display | Image Sensor | Dual senser，1/2.9” Progressive Scan CMOS |
| Video Resolution | 2K ;1920X1080 | |
| Effective Pixels | 4MP | |
| Aspect Ratio | 16 : 5 | |
| Video Encoding | Smart H.264 | |
| Video Frame Rate | Up to 15Fps | |
| Video Bit Rate | Up to 1024 | |
| Minimum Illumination | 0Lux(IR ON) | |

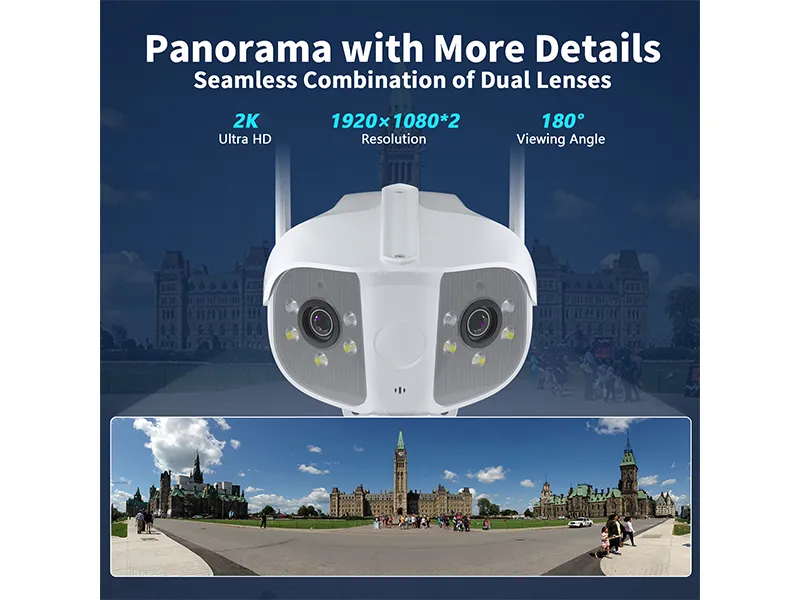

| Lens | Number of lenses | 2 pcs |
| Focal Length | 3.6MM | |
| Field of view | Horizontal field of view 180° ± 10°, vertical field of view 55° ± 10° | |
| Lens Mount | M12 | |
| Aperture Type | Fixed Aperture | |
| Maximum Aperture | F1.4 | |
| Fill Light | Infrared Light | 6pcs 18mil IR LEDs |
| Infrared Night Vision Screen | Black and White | |
| Night Vision Distance | 10-30m | |
| Floodlight | 6pcs 18mil White Light | |
| Floodlight Night Vision | Color | |
| Night Vision Distance | 15-20m | |
| Audio Intercom | Recording sound distance | 15m |
| Intercom Distance | 15m | |

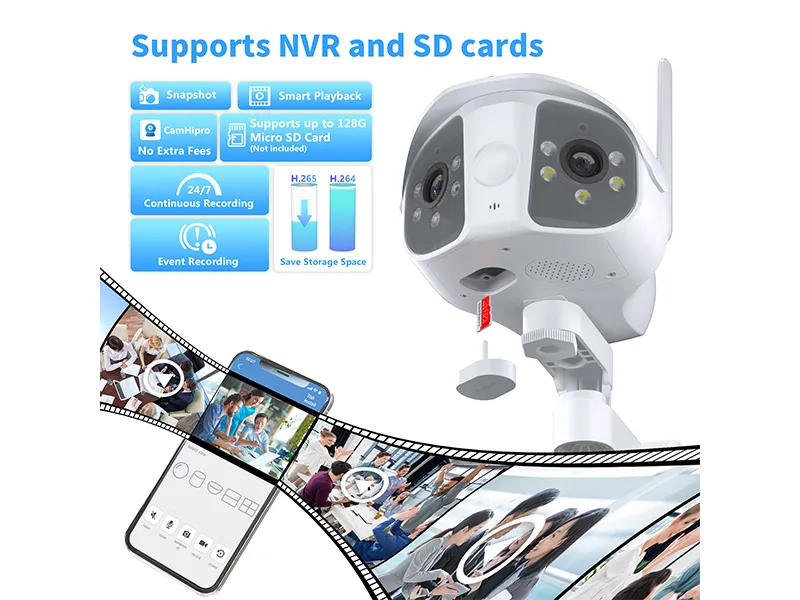

| Video Storage | TF Card Slot | Maximum support 128G |
| Cloud Storage | Not Support | |
| Language | APP Language | Chinese/English/Japanese/Portuguese and so on |
| Terminal Equipment | Mobile Phone | Support Android/Apple/Harmony system mobile phones |
| Laptop | Support Android/Apple/Harmony system tablet | |
| Desktop PC | Support | |
| Smart Function | Motion Detection | Support |
| Humanoid Detection | Support | |
| Linkage Alarm Mobile Phone Push | Support | |
| Linkage Device Voice Alarm | Support | |
| Signal Transmission | Transmission Type | Wireless/Wired/4G GSM |
| Wired Interface | 1 RJ45 10M/100M adaptive Ethernet port | |
| Radio Frequency | 2.4Ghz/4G GSM | |
| Wireless Distance | Unobstructed 30 meters, partition wall 10-15 meters | |
| Packaging Specifications | Unit Size | 171X152X95mm |
| Net Weight | 0.58kg | |
| 32 pieces/CTN | 615X345X350MM | |
| Carton Weight | 18.8kg |
