Electrical | Frequency Range | 698-960/1710-2700MHz |
Gain | 4/6dBi | |

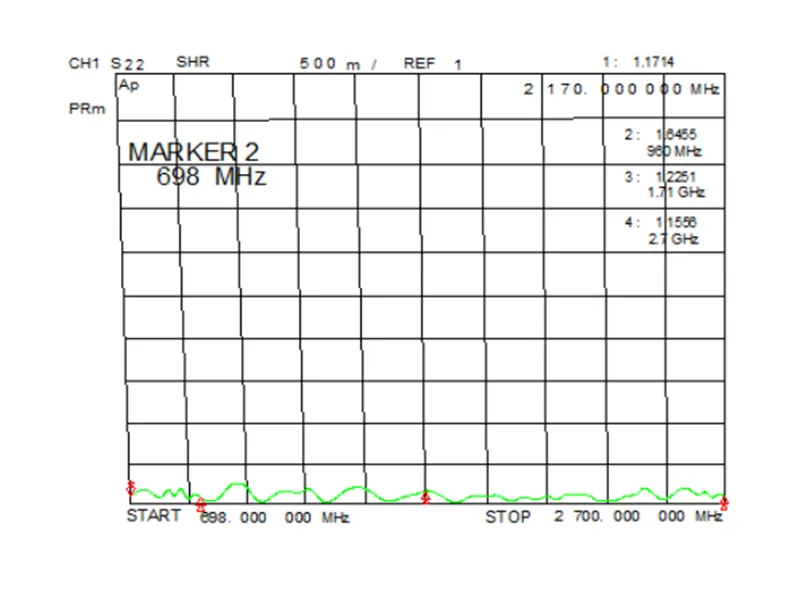

VSWR | ≤2.0 | |
Input Impedance | 50Ω | |
Polarization | Vertical | |
Horizontal Half Power Angle | 360° | |
Vertical Half Power Angle | 70° | |
Max Input Power | 100W | |
Lightning Protection | DC Ground | |
Mechanical | Working Temperature | -40℃~﹢65℃ |

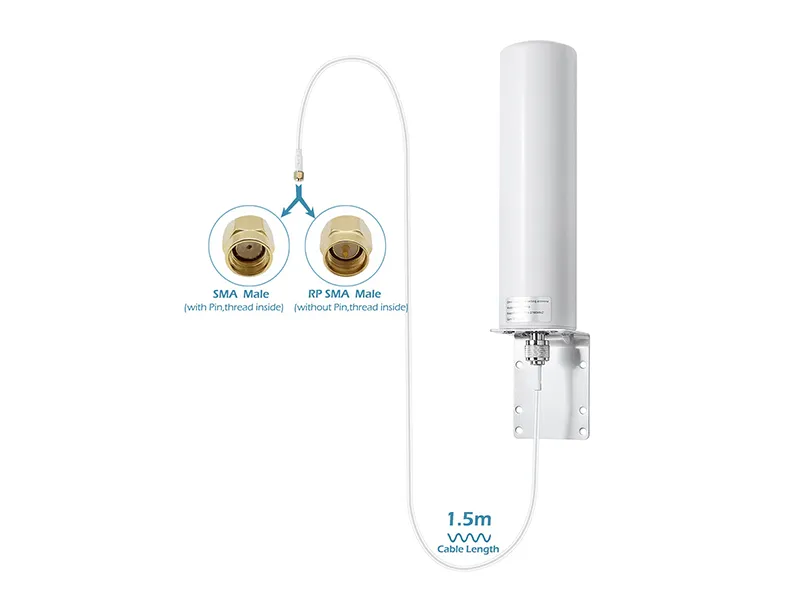

Connector Type | N female | |
Antenna Weight | 0.5kg | |
Size | Φ63x240mm | |
Pole Diameter | Φ35~55mm | |
Rated Wind Velocity | 210km/h | |
Antenna Cover Material | ABS | |
Color | White | |
Package Size | 600*80*80mm | |
Weight | 1.3KG |

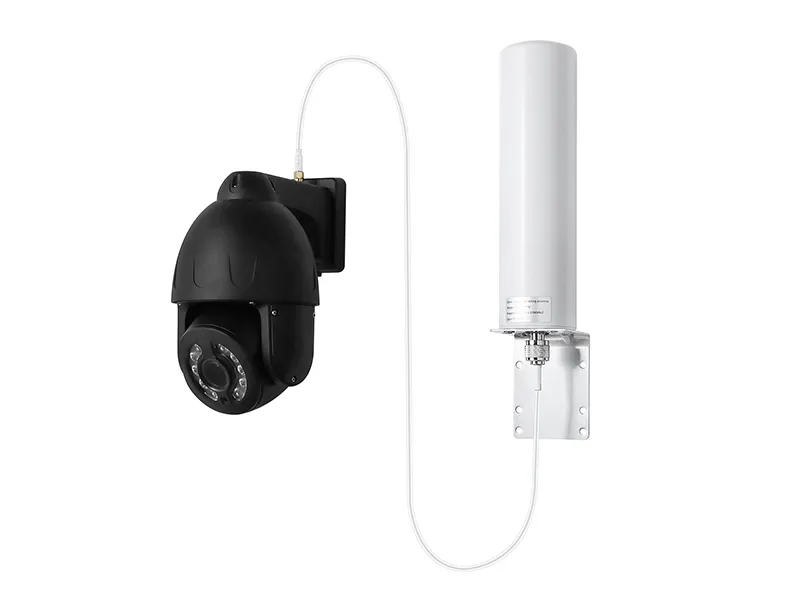

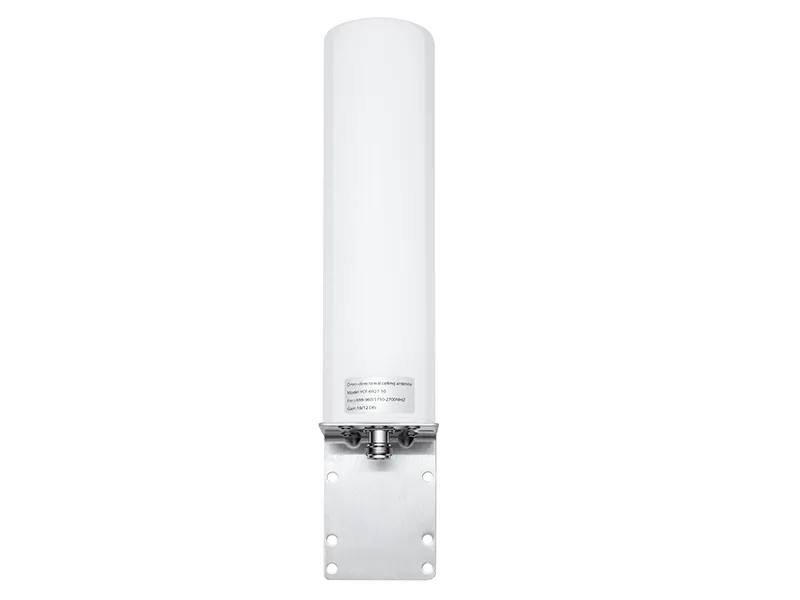

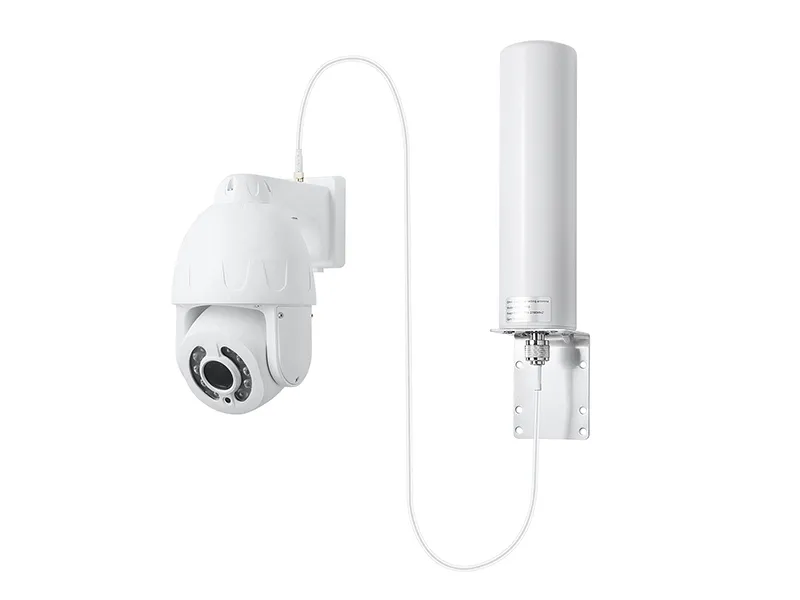

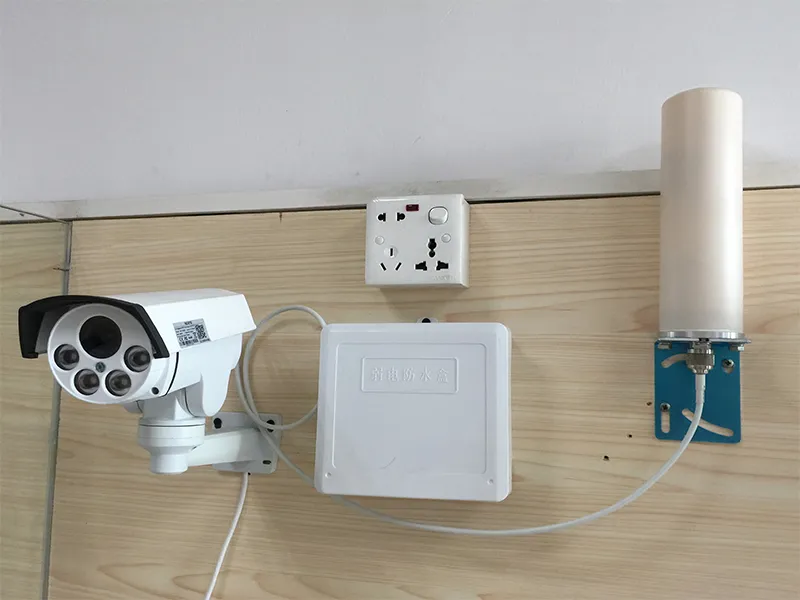

Camera Antenna
Enhance the Camera’s signal reception range and strength
